WR Series
Our stainless steel wire vibration absorber has both buffering and shock absorption features that are designed with a simple and compact integration. The wire is fixed in a spiral shape. It is suitable for 3D printers, unmanned cameras and many other applications.
-
MaterialStainless wire：302, 304 stainless steel
Fixed block：anodized aluminum alloy -
Temperature range-10~+80°C
-

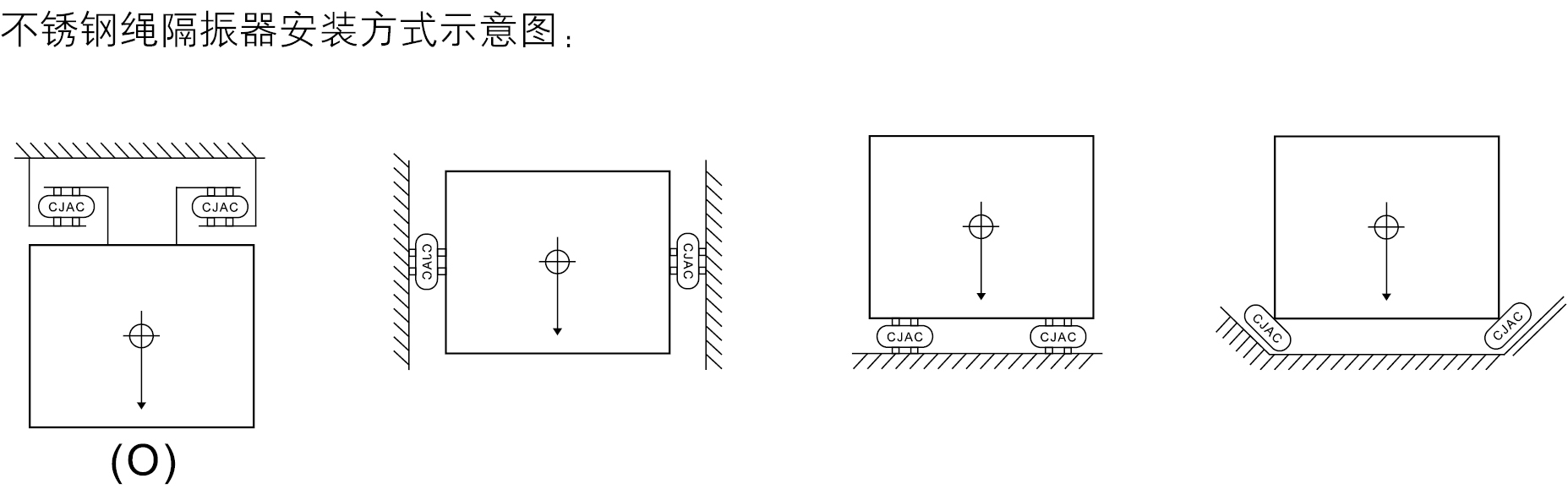

InstallationCJAC provides you various kinds of installation, such as with flanges, tripods, etc., The installation can be customized according to your needs.
-
Specific demandCJAC also offers custom services.

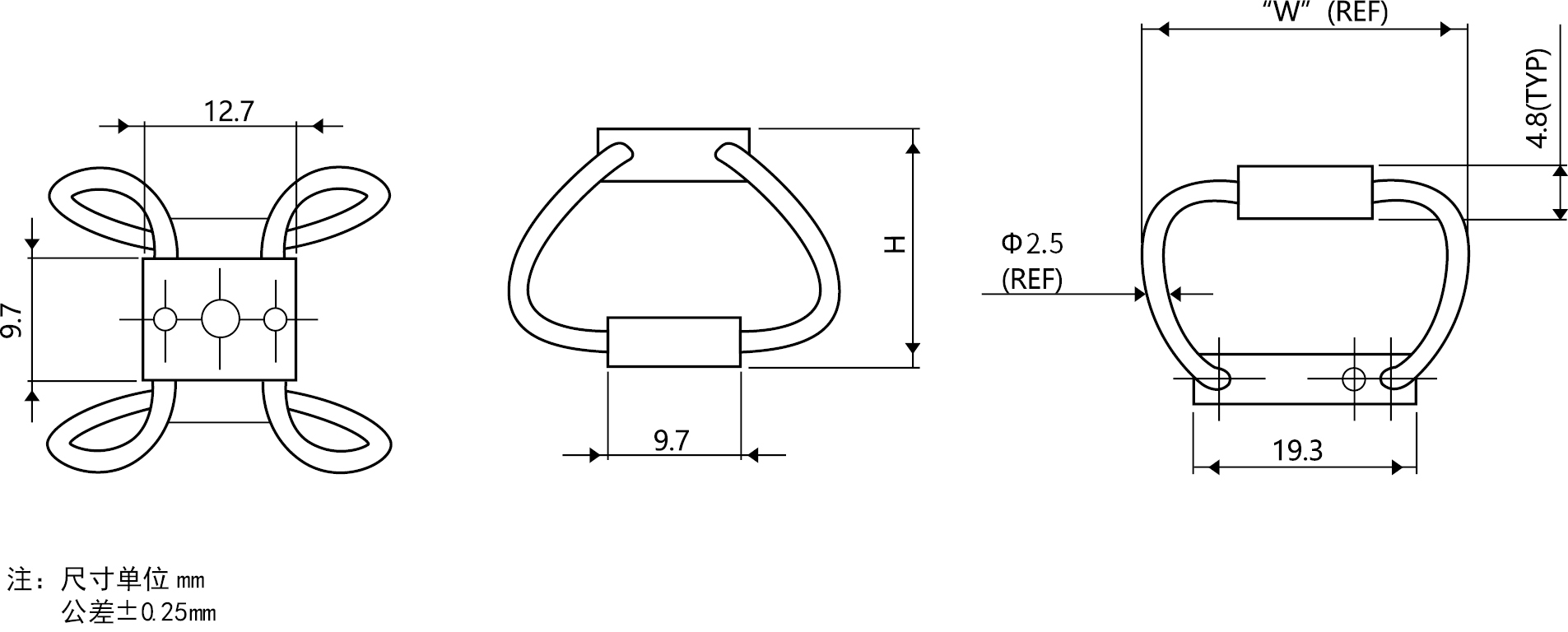

WR1-100~WR1-400
| Model | WR1-100 | WR1-200 | WR1-300 | WR1-400 |
|---|---|---|---|---|
| Height (mm) | 17±1.52 | 19±1.52 | 23±1.52 | 26±1.52 |
| Width reference (mm) | 19 | 20 | 23 | 26 |
| Weight (g) | 3.1 | 3.1 | 3.4 | 3.4 |
| Optional items | M,B,C | M,B,C | M,B,C | M,B,C |
| Through hole (mm) | Φ3.30 | Φ3.30 | Φ3.30 | Φ3.30 |
| Screw (mm) | M3x0.5 | M3x0.5 | M3x0.5 | M3x0.5 |
| Countersink | 90° | 90° | 90° | 90° |

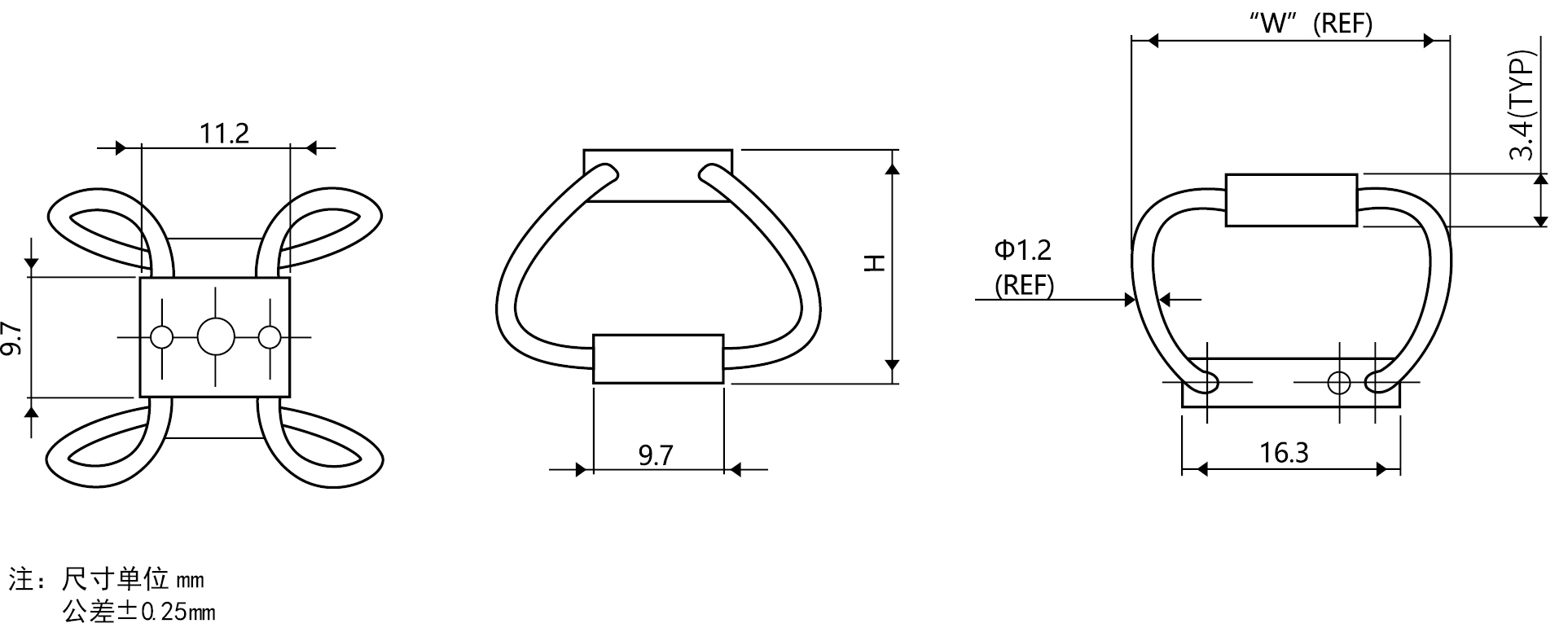

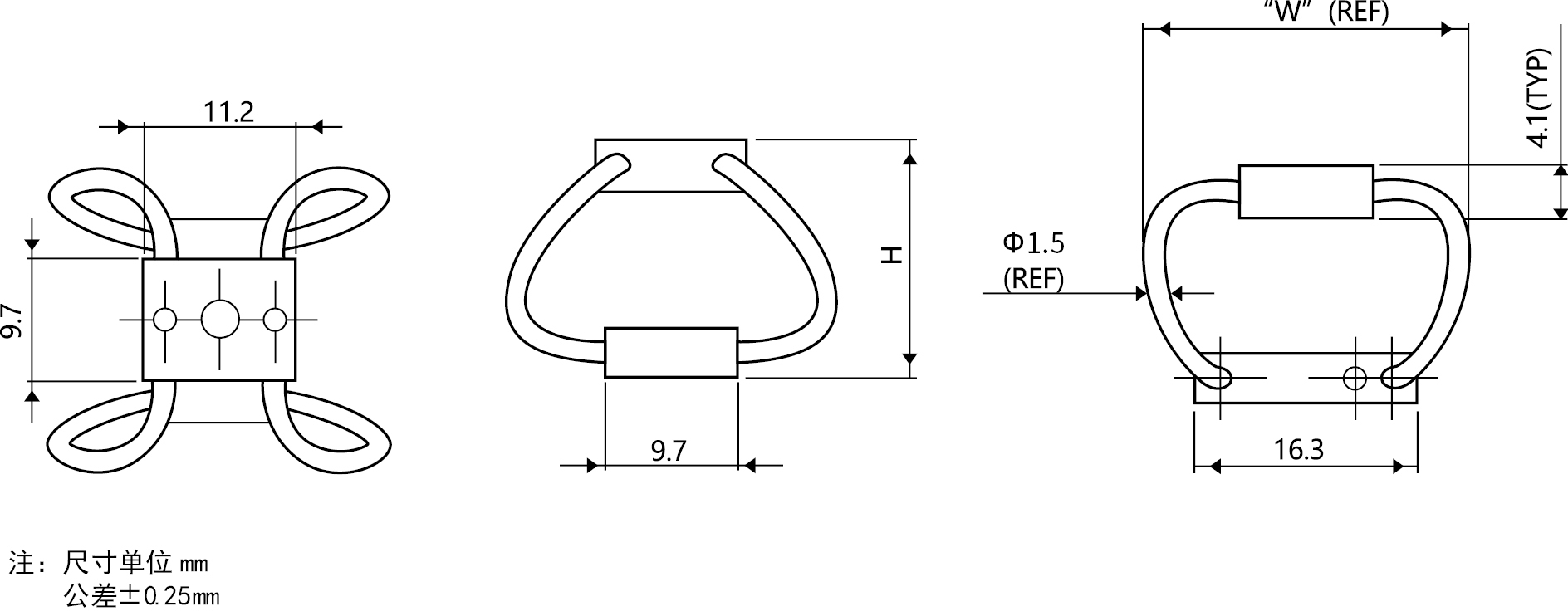

| Model | WR2-100 | WR2-200 | WR2-300 | WR2-400 |
|---|---|---|---|---|
| Height (mm) | 16±1.52 | 19±1.52 | 23±1.52 | 27±1.52 |
| Width reference (mm) | 20 | 21 | 24 | 27 |
| Weight (g) | 3.7 | 4 | 4.3 | 4.5 |
| Optional items | M,B,C | M,B,C | M,B,C | M,B,C |
| Through hole (mm) | Φ3.30 | Φ3.30 | Φ3.30 | Φ3.30 |
| Screw (mm) | M3x0.5 | M3x0.5 | M3x0.5 | M3x0.5 |
| Countersink | 90° | 90° | 90° | 90° |
