Product introduction
AD Series
The AD series is designed with an adjustable structure. When encountered with different loading, different impact speeds, users can adjust the adjustment knob to modify the most appropriate scale, and perfectly absorb the energy generated by the objects. Compared to the AC series, the AD series has a higher energy absorption capacity and a larger range of applications.
-
MaterialOuter pipe：AISI1215 and STKM11A oxidized black, and the nickel plating treatment enhances rust resistance
Piston rod：hard chromium plating treatment and special seals for longer lifespan
Piston：We adopt materials with excellent wear resistance to ensure long-lasting and stable cushioning -
Speed range0.3~4.5m/s
-
Temperature range-10~+80°C
-
InstallationCJAC offers customers a variety of mounting options such as nut (NUT), flange (F), positioning stop nut (SC), angle adapter (SLA) and more. In addition, customers can also customize services according to their own requirements.
-
RoHS CertificatesAll the AD1410, AD1425, AD2016, AD2025, AD2525, AD2540, AD2550, AD2580, AD3625, AD3650 have received the RoHS certifications.
-
Special demandsCJAC is able to customize solutions based on your requirements.
Performance parameter
AD1007~AD3352
| Model | AD1007 | AD1210 | AD1410 | AD1415 | AD1425 | AD1612 | AD2016 | AD2016-C | AD2020 | AD2025 | AD2050 | AD2525 | AD2530 | AD2540 | AD2550 | AD2580 | AD2725 | AD3326 | AD3352 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Stroke (mm) | 7 | 10 | 10 | 15 | 25 | 12 | 16 | 16 | 20 | 25 | 50 | 25 | 30 | 40 | 50 | 80 | 25 | 26 | 52 |
|
Maximum absorbed energy (Nm(Et)) | 6 | 12 | 20 | 24 | 28 | 22 | 28 | 28 | 34 | 39 | 69 | 85 | 95 | 100 | 120 | 150 | 85 | 195 | 385 |
|
Absorbed energy per hour (Nm(Etc)) | 12,400 | 22,000 | 25,000 | 26,000 | 27,500 | 27,500 | 27,500 | 28,500 | 29,000 | 30,000 | 52,000 | 54,000 | 60,000 | 80,000 | 90,000 | 120,000 | 54,000 | 75,700 | 98,962 |
|
Maximum effective weight (Kg(Me)) | 25 | 35 | 80 | 100 | 140 | 130 | 200 | 200 | 298 | 312 | 420 | 400 | 480 | 700 | 720 | 800 | 400 | 1,400 | 2,400 |
|
Highest impact speed (m/s(v)) | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 4.0 | 4.0 | 3.5 | 3.3 | 3.3 |
| Thread | M10x1.0 | M12x1.0 | * M14x1.0 M14x1.5 | * M14x1.0 M14x1.5 | * M14x1.0 M14x1.5 | * M16x1.0 M16x1.5 | M20x1.5 * M20x2.0 | M20x1.5 | M20x1.5 | M20x1.5 | M20x1.5 | M25x1.5 * M25x2.0 | M25x1.5 * M25x2.0 | M25x1.5 * M25x2.0 | M25x1.5 * M25x2.0 | M25x1.5 * M25x2.0 | M27x1.5 * M27x3.0 | M33x1.5 | M33x1.5 |
|
A (mm) | 65 | 90.3 | 109.7 | 128.2 | 153.2 | 99 | 148.3 | 127.3 | 152.3 | 157.3 | 239.3 | 162.5 | 167.5 | 221.5 | 247 | 343.5 | 162.5 | 150.3 | 217.3 |
|
B (mm) | 49.4 | 71.7 | 88.5 | 102 | 117 | 76.5 | 117 | 96 | 117 | 117 | 174 | 118.5 | 118.5 | 144.5 | 178 | 244.5 | 118.5 | 110.5 | 151.5 |
|
D (mm) | 3 | 3 | 4 | 4 | 4 | 4 | 6 | 6 | 6 | 6 | 6 | 8 | 8 | 8 | 8 | 8 | 8 | 10 | 10 |
|
F (mm) | 35.5 | 57.3 | 72.5 | 86 | 101 | 54.9 | 101 | 80 | 101 | 101 | 158 | 101 | 101 | 117 | 100 | 100 | 101 | 77.9 | 118.7 |

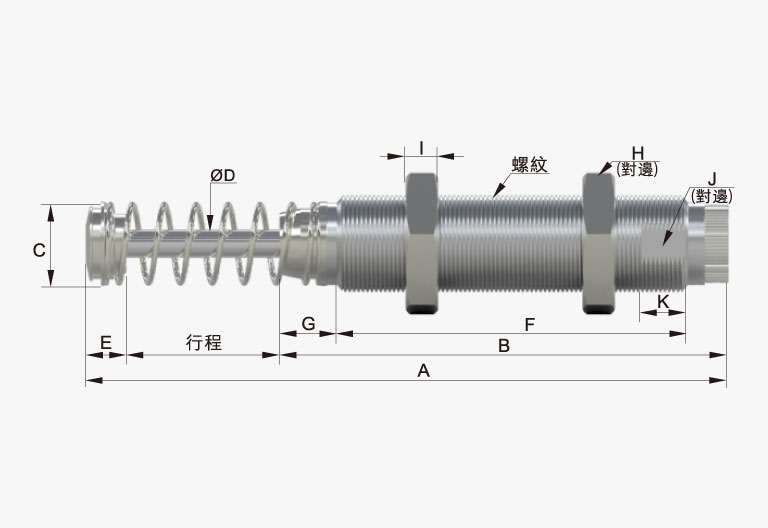

| Corresponding illustration | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 3 | 3 | 1 | 4 | 4 |
| Model | AD3625 | AD3650 | AD4225 | AD4225-NH | AD4250 | AD4250-NH | AD4275 | AD64050 | AD64100 | AD64150 |
|---|---|---|---|---|---|---|---|---|---|---|
|
Stroke (mm) | 25 | 50 | 25 | 25 | 50 | 50 | 75 | 50 | 100 | 150 |
|
Maximum absorbed energy (Nm(Et)) | 150 | 300 | 260 | 260 | 500 | 500 | 750 | 1,200 | 2,400 | 3,600 |
|
Absorbed energy per hour (Nm(Etc)) | 81,000 | 100,000 | 125,000 | 125,000 | 150,000 | 150,000 | 180,000 | 150,500 | 200,000 | 250,000 |
|
Maximum effective weight (Kg(Me)) | 1,400 | 2,400 | 3,000 | 3,000 | 4,000 | 4,000 | 6,000 | 12,727 | 18,181 | 23,636 |
|
Highest impact speed (m/s(v)) | 3.0 | 3.0 | 3.5 | 3.5 | 4.5 | 4.5 | 4.5 | 1.5 | 1.5 | 1.5 |
| Thread | M36x1.5 | M36x1.5 | M42x1.5 | M42x1.5 | M42x1.5 | M42x1.5 | M42x1.5 | M64x2.0 * (-B)UNF21/2-12 | M64x2.0 * (-B)UNF21/2-12 | M64x2.0 * (-B)UNF21/2-12 |
|
A (mm) | 184 | 247 | 186.5 | 176.1 | 241 | 230.6 | 301.5 | 247.8 | 347.8 | 467.8 |
|
B (mm) | 133 | 171 | 127.5 | 132.6 | 157 | 162.1 | 187.5 | 146 | 196 | 256 |
|
D (mm) | 10 | 10 | 12 | 12 | 12 | 12 | 12 | 20 | 20 | 20 |
|
F (mm) | 103 | 134 | 99 | 98.5 | 117.5 | 128 | 148 | 26 | 26 | 26 |
| Corresponding illustration | 1 | 1 | 2 | 1 | 2 | 1 | 2 | 3 | 3 | 3 |
