AC-RSN Series
The AC-RSN series can be used in air-tight environments to maintain a good seal of the damper. This product is equipped with a threaded gasket that seals the gas in the cylinder when installed in a rotating cylinder. The inner tube has a hexagon socket on the bottom for quick assembly.
-
MaterialOuter pipe: AISI1215 and STKM11A nitriding blasting treatment can enhance rust resistance. Axis: hard chromium plating treatment and special seals for longer lifespan
-
Speed range0.3~5.0m/s
-
Temperature range-10~+80°C
-
ApplicationThe AC-RSN series is mainly installed in a rack type gear and pin type rotary cylinder, which can absorb the kinetic energy generated when the cylinder is rotated, and it can also be used as a kinetic energy absorbing element of other industrial automatic equipment.
-
Special demandsCJAC is able to customize solutions based on your requirements.
Performance parameter
AC0806-RSN~AC1210-RSN
| Model | AC0806-RSN | AC1007-RSN | AC1210-RSN |
|---|---|---|---|
|
Absorbing travel (mm) | 6 | 7 | 10 |
|
Maximum pressure (Mpa) | 0.7 | 0.7 | 0.7 |
|
Maximum absorbed energy (Nm(Et)) | 3 | 6 | 12 |
|
Absorbed energy per hour (Nm(Etc)) | 7,000 | 12,400 | 22,500 |
|
Maximum effective weight (Kg(Me)) | 6 | 12 | 22 |
|
Highest impact speed (m/s(v)) | 0.3~2.5 | 0.3~3.5 | 0.3~4.0 |
| Working temperature | -10~+80°C | -10~+80°C | -10~+80°C |
|
Weight (g) | 15 | 28 | 32 |

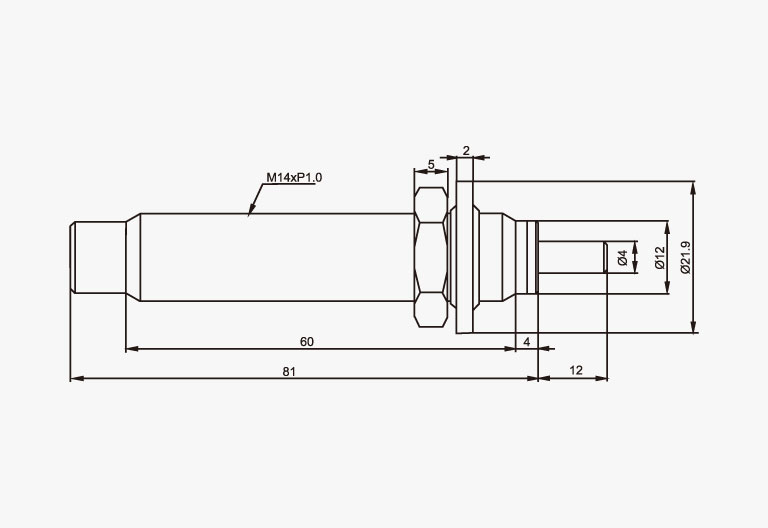

| Corresponding illustration | 1 | 2 | 3 |
| Model | AC1412-RSN | AC2015-RSN | AC2725-RSN |
|---|---|---|---|
|
Absorbing travel (mm) | 12 | 15 | 25 |
|
Maximum pressure (Mpa) | 0.7 | 0.7 | 0.7 |
|
Maximum absorbed energy (Nm(Et)) | 20 | 59 | 147 |
|
Absorbed energy per hour (Nm(Etc)) | 33,000 | 38,000 | 72,000 |
|
Maximum effective weight (Kg(Me)) | 40 | 120 | 270 |
|
Highest impact speed (m/s(v)) | 0.3~5.0 | 0.3~5.0 | 0.3~5.0 |
| Working temperature | -10~+80°C | -10~+80°C | -10~+80°C |
|
Weight (g) | 70 | 160 | 375 |
| Corresponding illustration | 1 | 2 | 3 |
